【滤镜组】荧光显微镜干涉滤光片Cy3.5（硬镀膜）

￥ 0
联系销售获取折扣

BrightLine Basic™ single-band filter set, optimized for Cy3.5 and other like fluorophores

品牌/商标Brand/Trademark

Semrock
激发滤镜Exciter565/24x
发射滤镜Emitter

620/52m
二向色镜Dichroic

BS585
显色萤光团Specificity fluorophore
CY3.5
激发滤镜尺寸Exciter Size

Dia.25x5mm
发射滤镜尺寸Emitter Size

Dia.25x3.5mm
二向色镜尺寸Dichroic Size

25.2x35.7x1.1
镀膜方式类型Coating method

IBS硬膜
通道类型Channel type
单带通Single Bandpass
质保期限Warranty period
十年Ten years

  • 产品型号: Cy3.5-A-Basic-000
Loading ... …
  • 基本信息
  • 参数与手册
  • 图片与视频
品牌: Semrock
型号: Cy3.5-A-Basic-000
货号: N021206
货期: 现货
SKU 编码: N021206

招标参数

BrightLine Basic™ single-band filter set, optimized for Cy3.5 and other like fluorophores
Semrock Set / Fluorophore Graphing
Part Number: Cy3.5-A-Basic-000

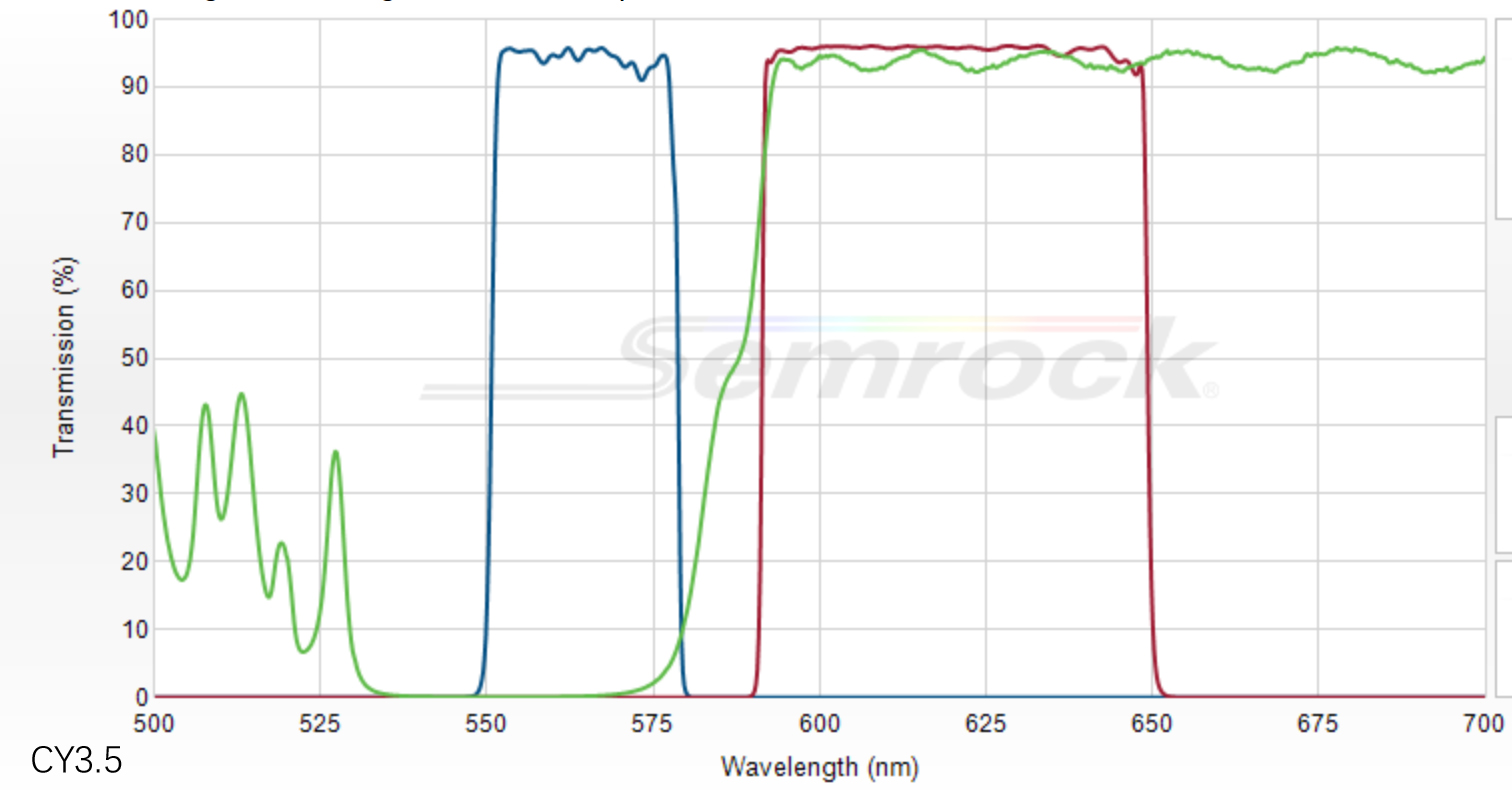

Spectrum
Single Band Exciter: 565/24nm
Single Band Emitter: 620/52nm
Dichroic: 585nm

Filter Size
Single Band Exciter: Dia.25 X 5mm
Single Band Emitter: Dia.25 X 3.5mm

技术参数

BrightLine Basic™ single-band filter set, optimized for Cy3.5 and other like fluorophores
Semrock Set / Fluorophore Graphing
Part Number: Cy3.5-A-Basic-000

Spectrum
Single Band Exciter: 565/24nm
Single Band Emitter: 620/52nm
Dichroic: 585nm

Filter Size
Single Band Exciter: Dia.25 X 5mm
Single Band Emitter: Dia.25 X 3.5mm
